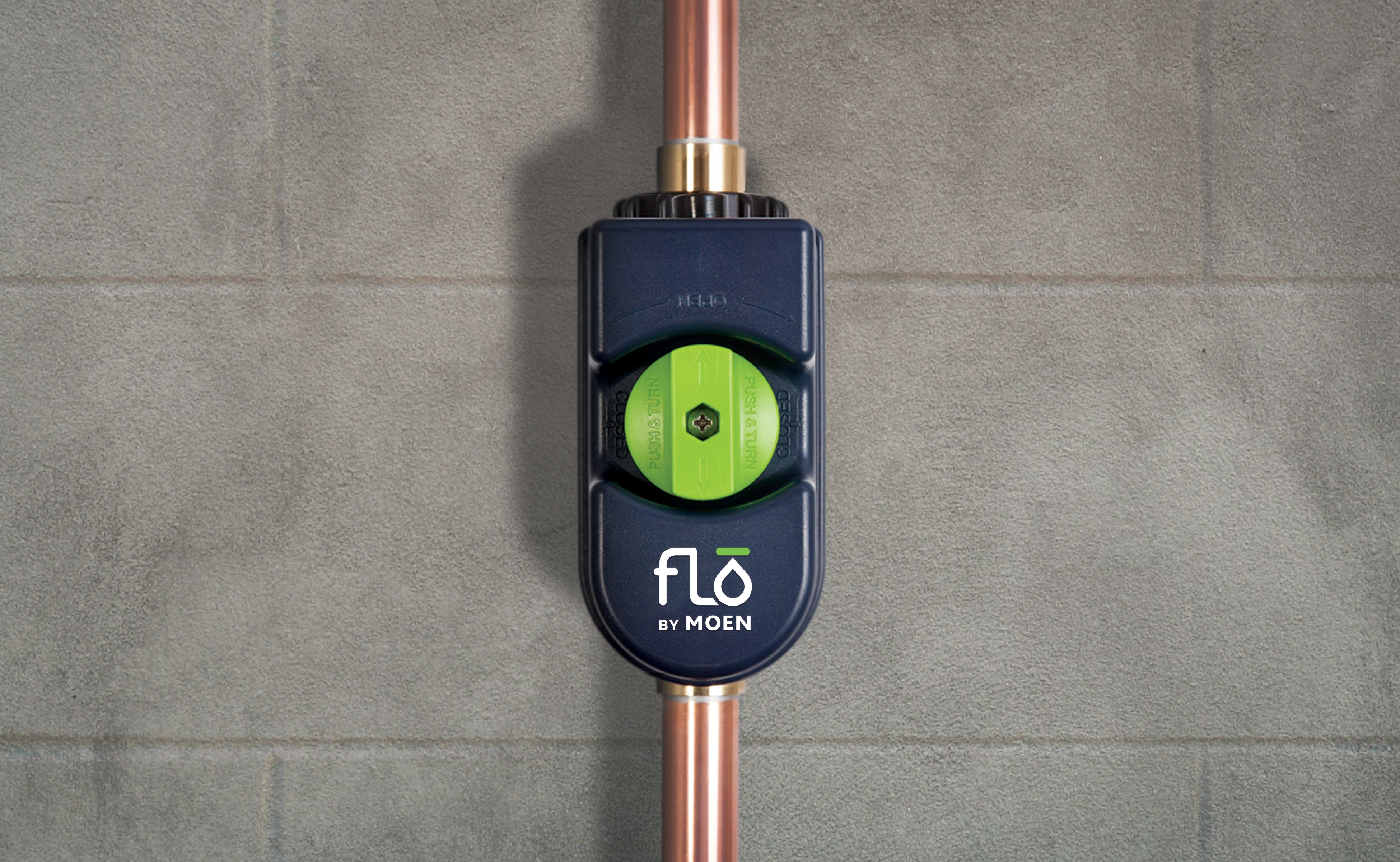

FLO-VALVE

Specifications

Installation requirements:
  • Above ground and accessible main water supply line
  • Main water supply line must be 1¼ inch or smaller for the 3/4" device and 1-1/2" or smaller for the 1-1/4" device
  • Standard power outlet
  • Smartphone (iPhone or Android)
  • Home Wi-Fi
  • Operating Conditions:
  • International Protection Marking IPx5 Rating
  • Min temperature (3/4″ & 1-1/4″): 0°C / 32°F
  • Max temperature (3/4″ & 1-1/4″): 50°C / 122°F
  • Maximum ambient temperature (3/4″ & 1-1/4″): 140°F
  • Water-Resistant
  • Features:

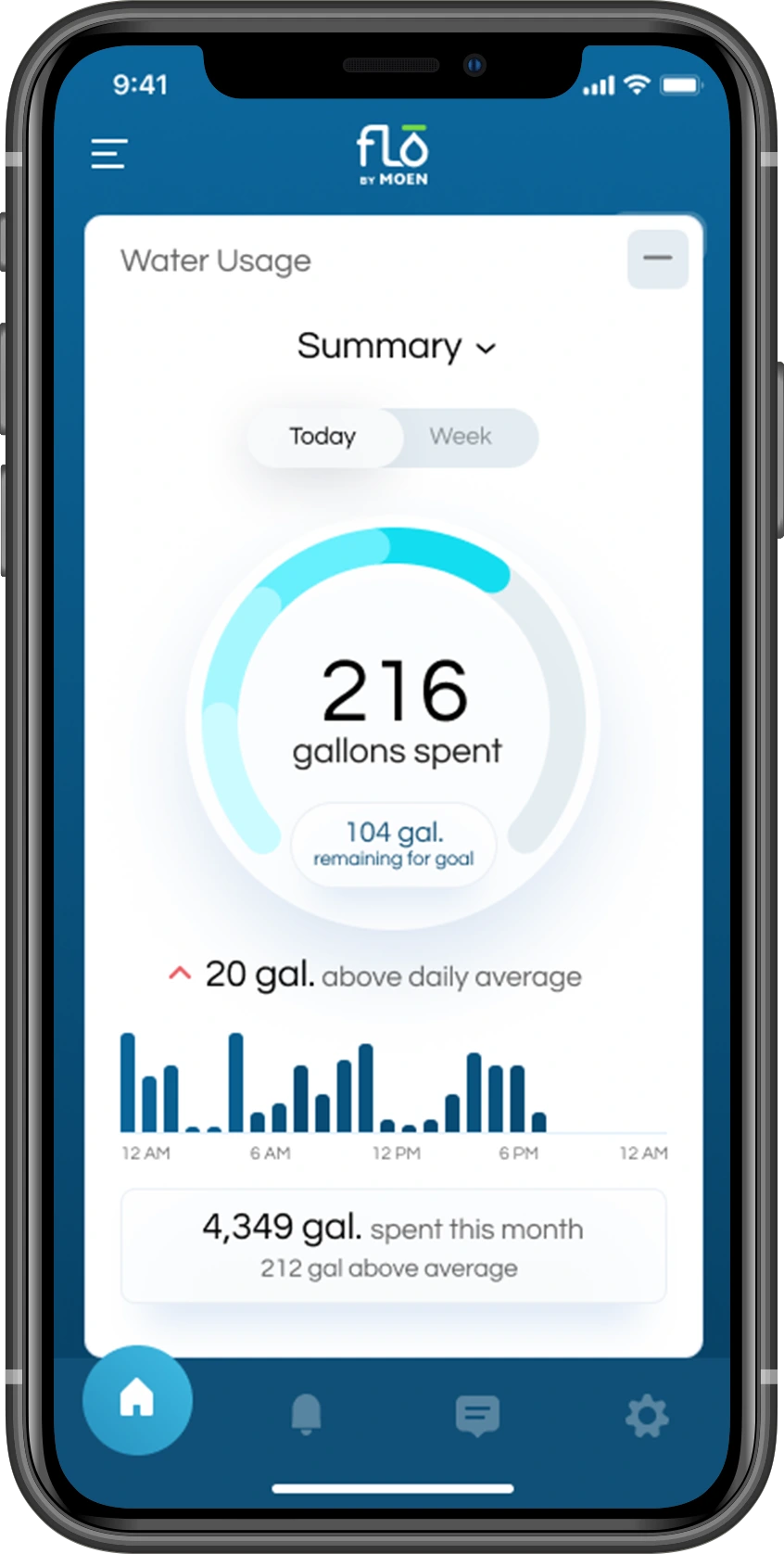

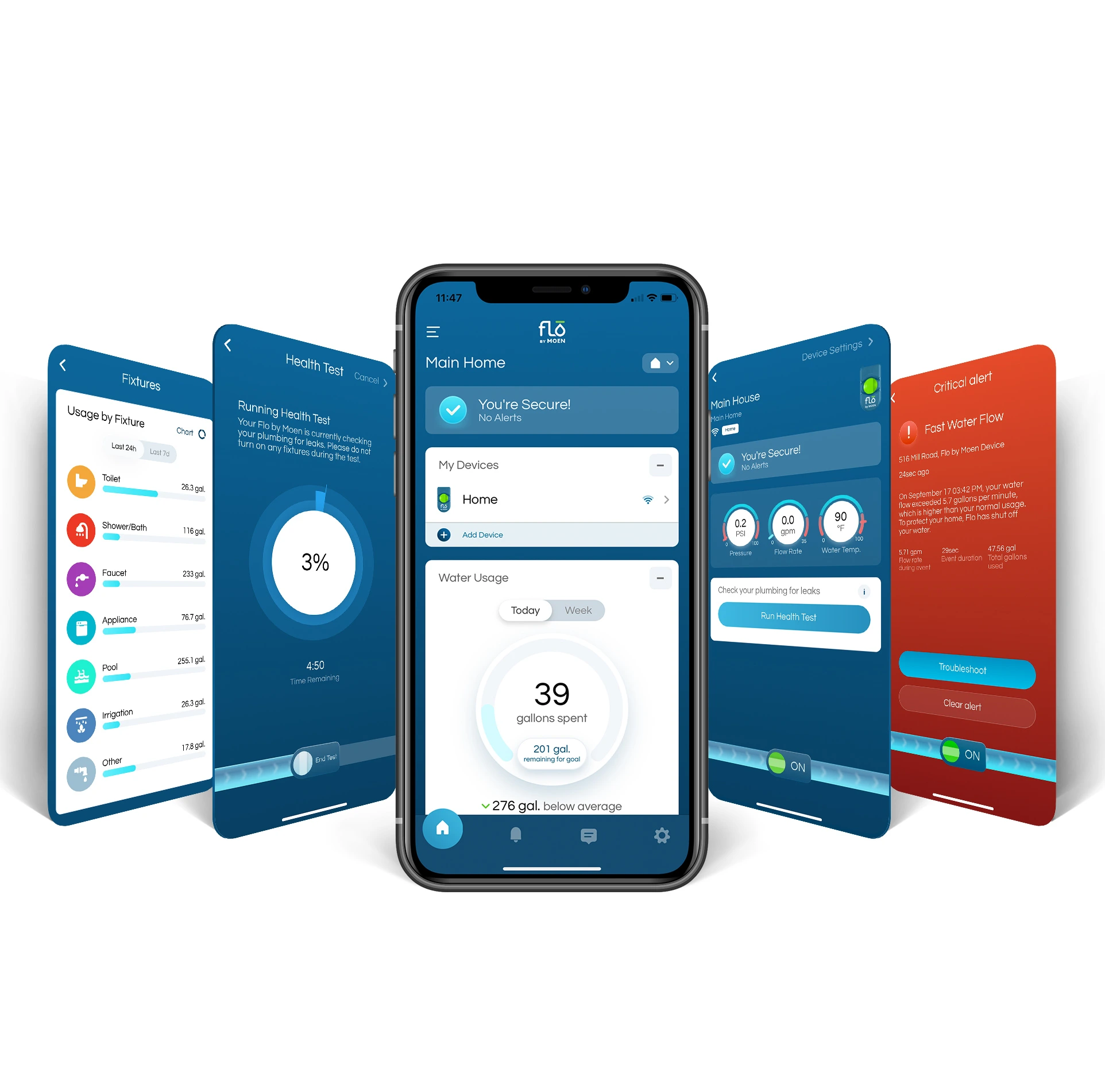

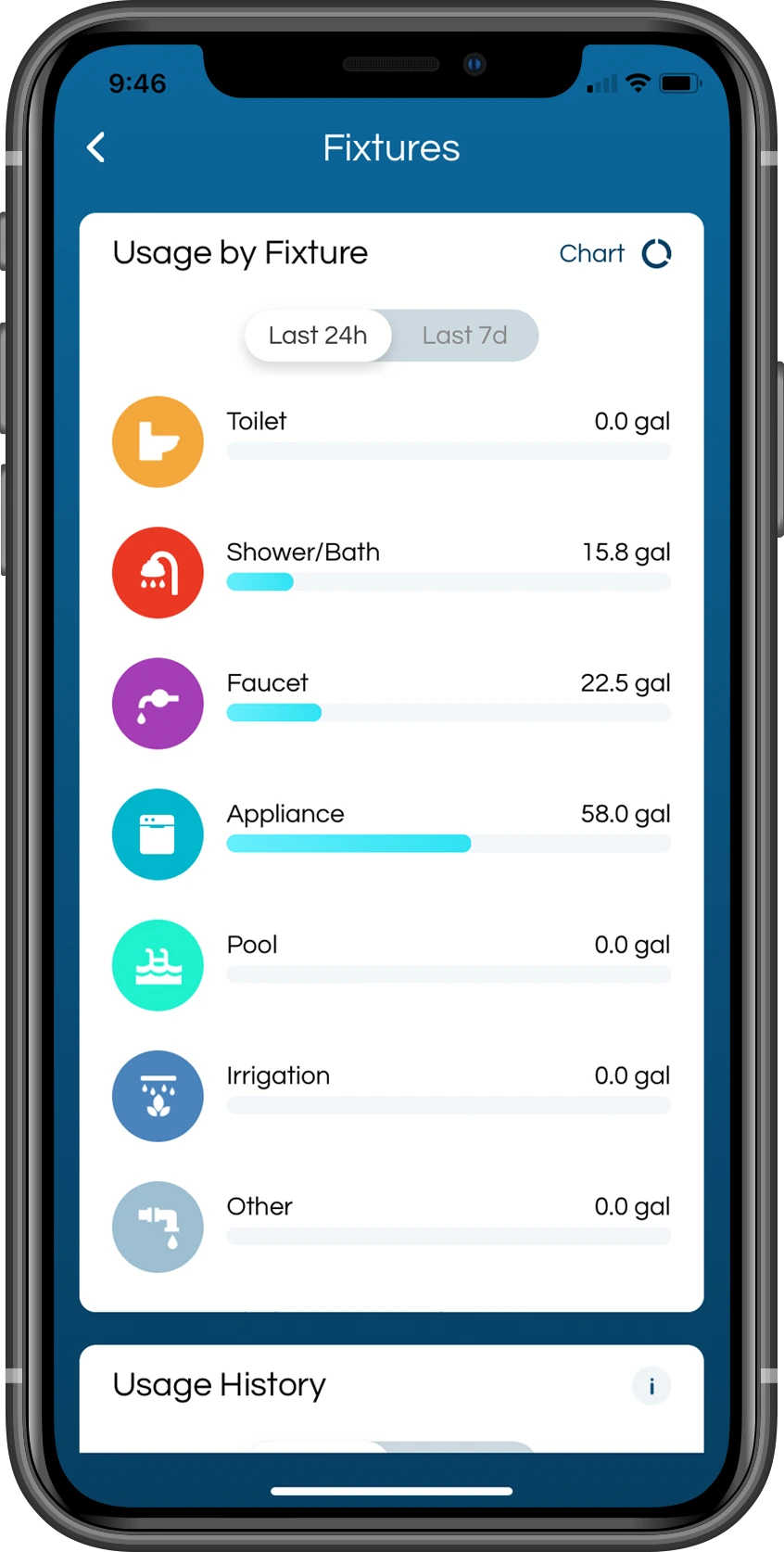

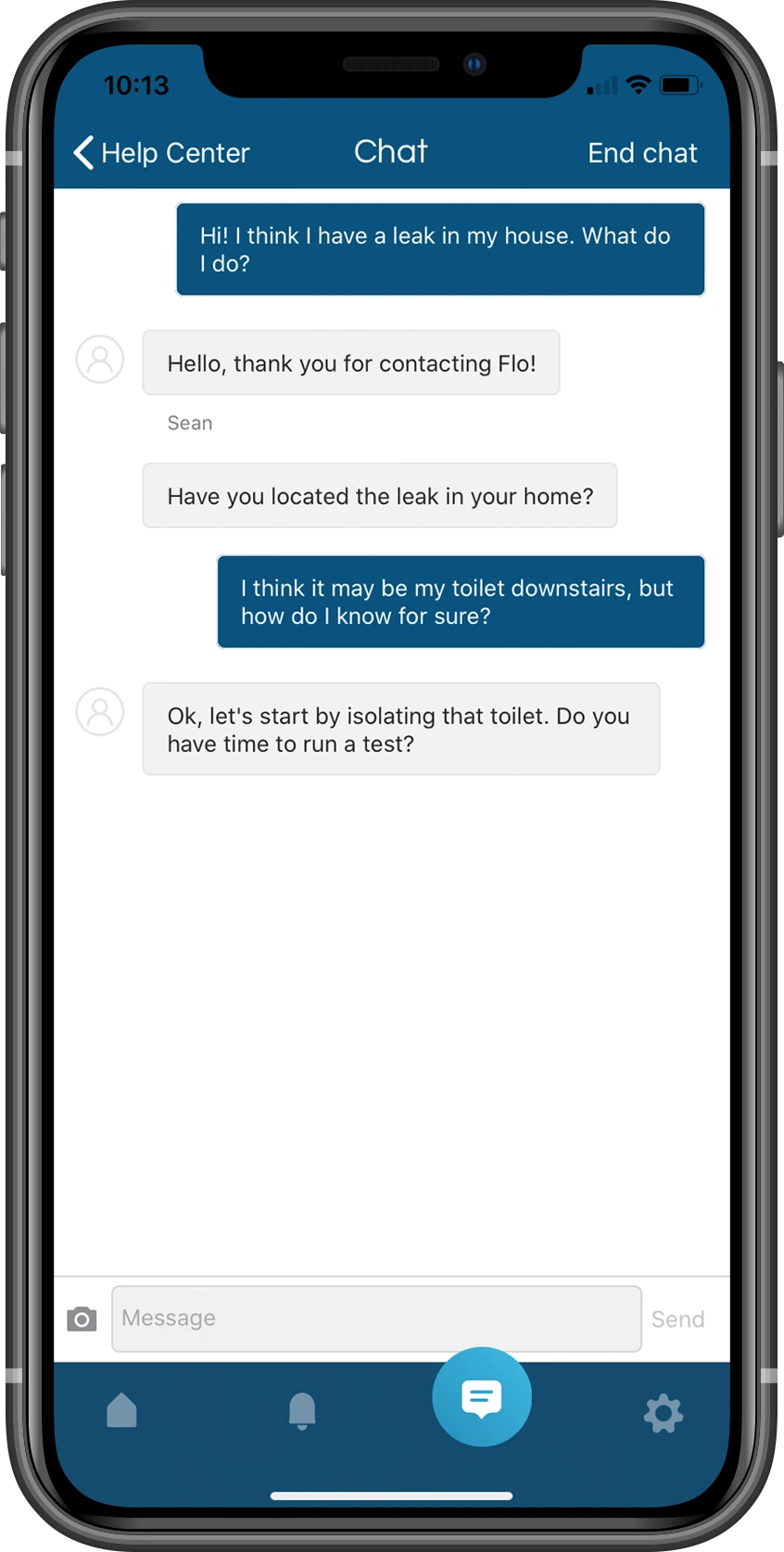

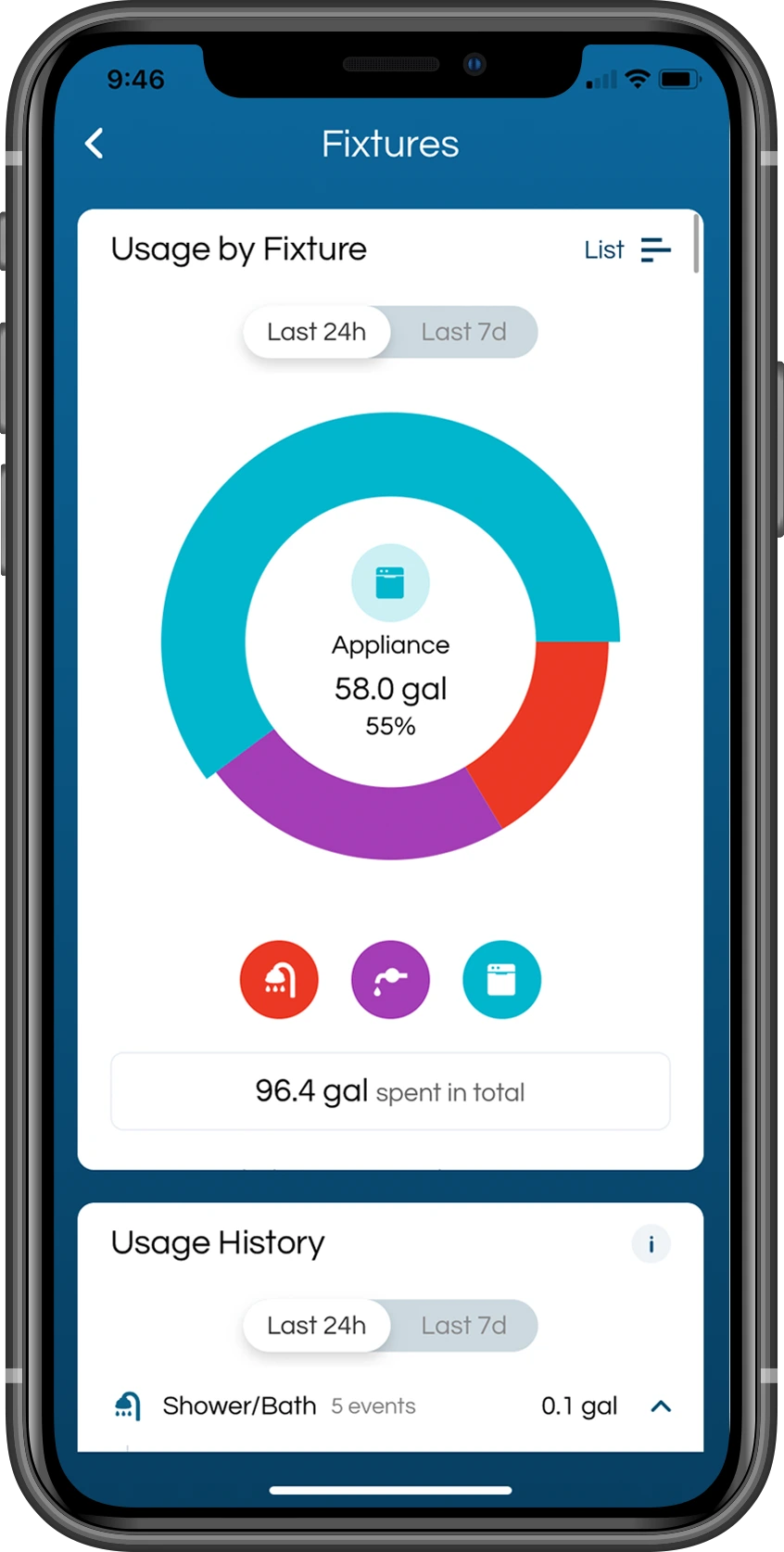

  • Mobile App with real time notifications, water usage analysis, and goal setting features.
  • Remote shut-off – from the mobile application, user has the ability to shut-off water wherever they are.

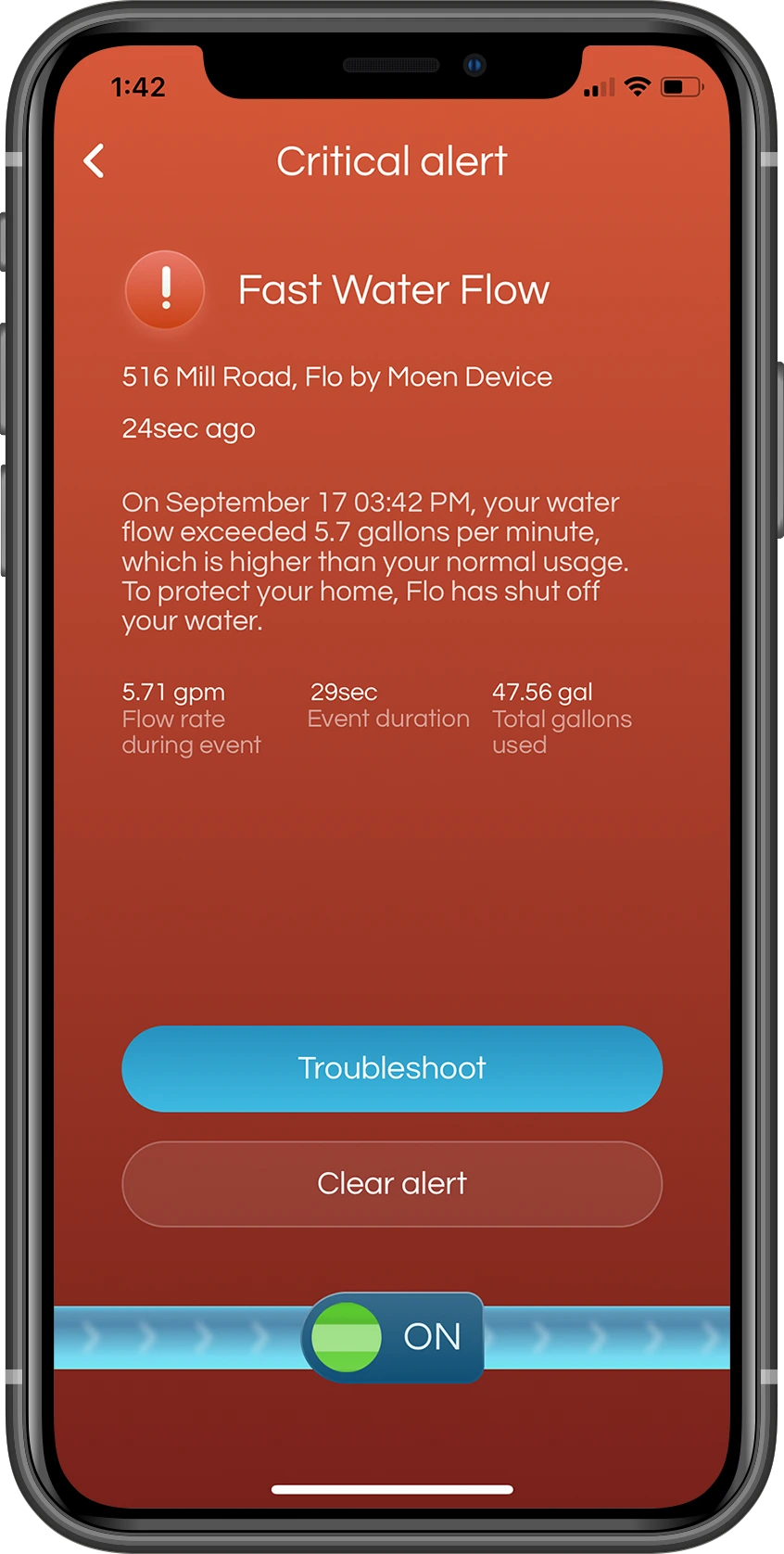

  • Automatic shut-off – if Flo by Moen senses a catastrophic leak in the home, it will automatically shut off the water supply to prevent damage.
  • Proactive 24/7 monitoring with preventative alerts to avoid catastrophic damage.

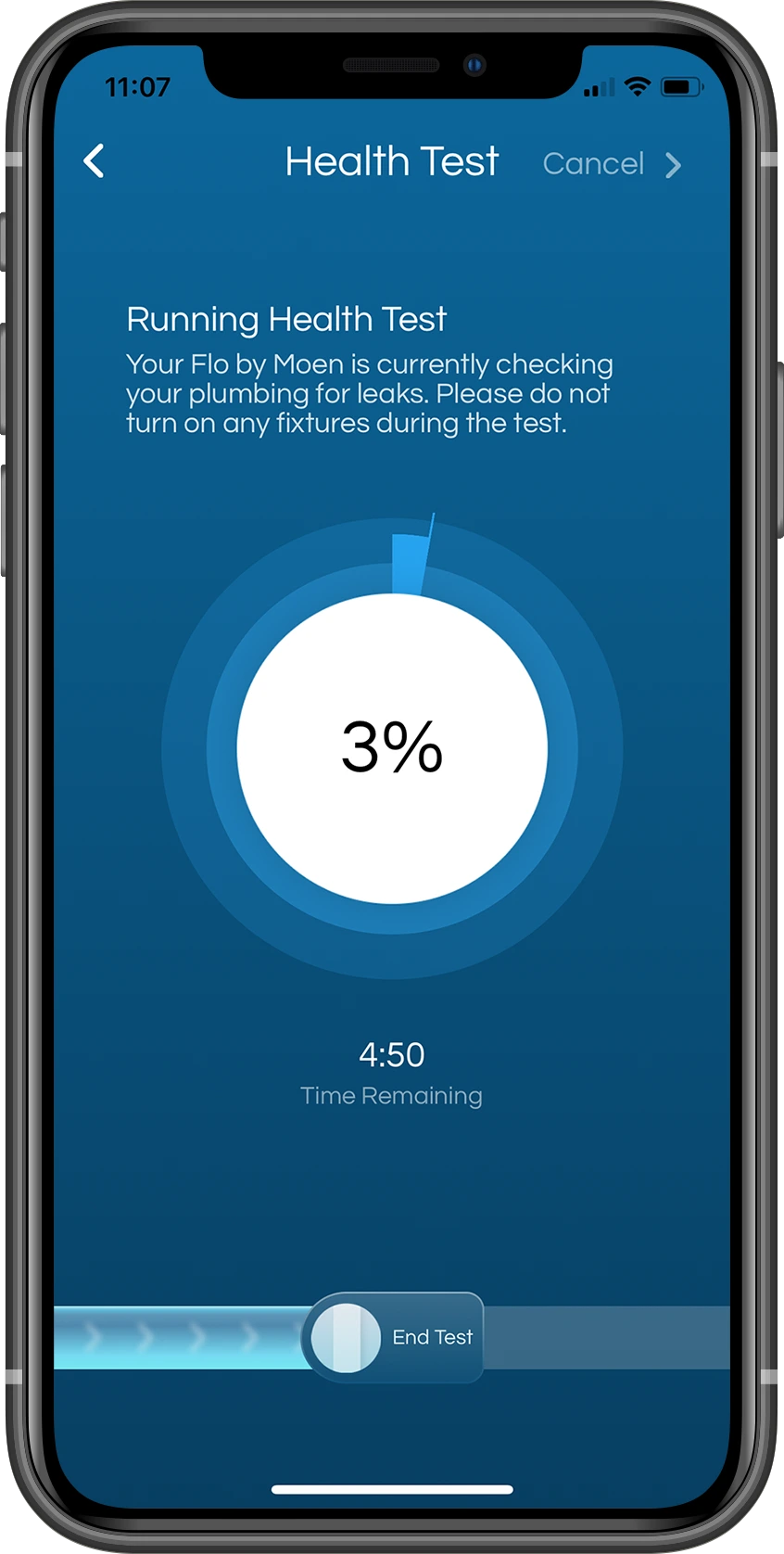

  • Microleak™ technology – daily tests to ensure your plumbing (not including sewage line) are secure.
  • Configurable alert and notification preferences.
  • Warranty:

    Flo warrants that the product will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery following the original retail purchase (collectively, the “Warranty Period”).

    Weight:

  • 3/4″: 1.90lbs / 0.8kg
  • 1-1/4″: 4.20lbs / 1.9kg
  • Connectivity Requirements:
  • iOS and Android compatible
  • WLAN Connectivity / IEEE 802.11bgn, 2.4 GHz frequency
  • Powered via plug-in AC to DC transformer
  • Power Supply: 12 VDC via 100-240V – 50/60 Hz switching type

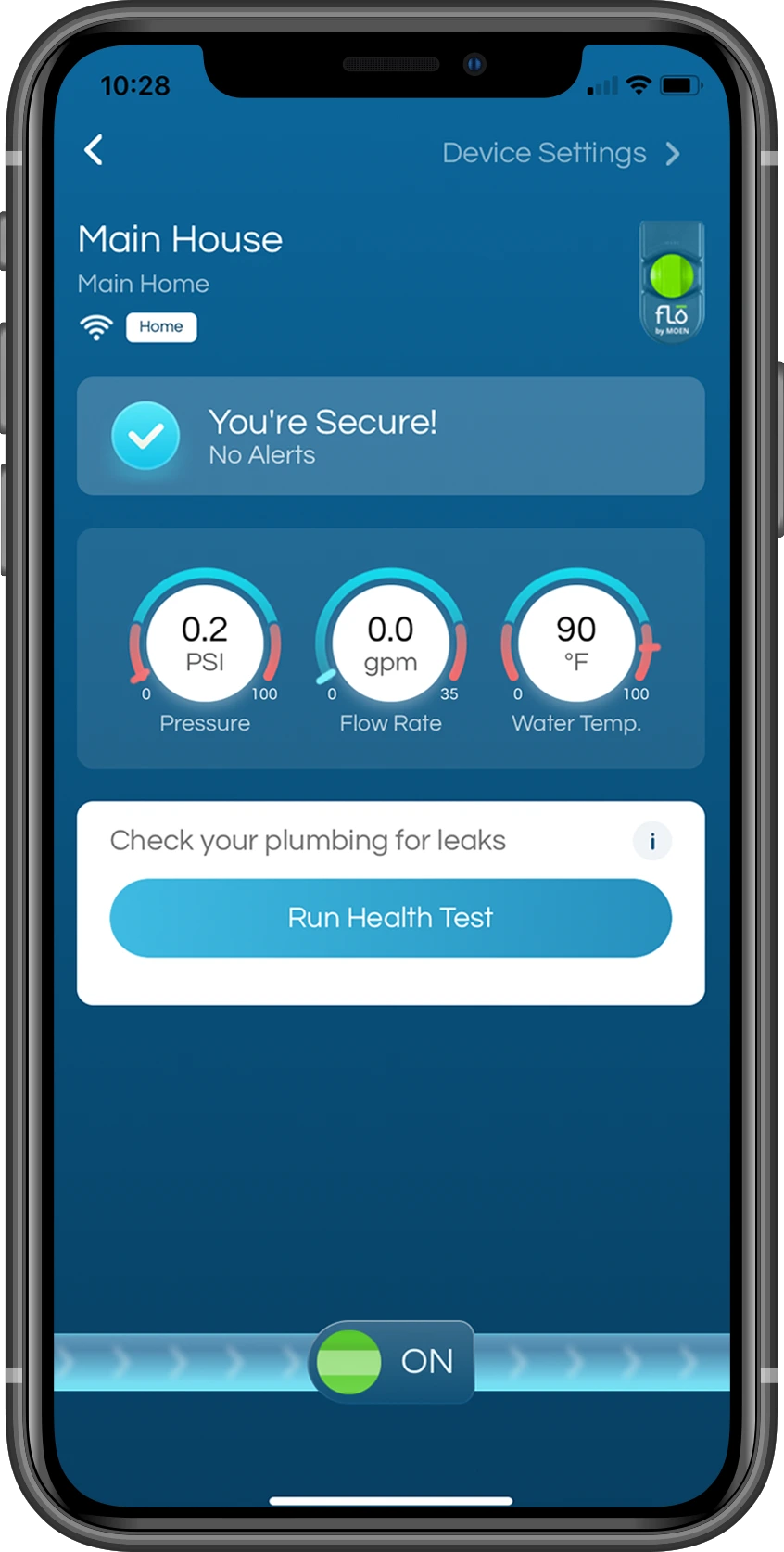

  • Sensors:
  • Water Pressure
  • Water Temperature
  • Water Flow Rate
  • The Flo by Moen device is certified for use on cold water service lines only.

    Certifications


    Plumbing :

  • NSF/ANSI 61 – Drinking Water System Components – Health Effects
  • NSF/ANSI 372 – Drinking Water System Components – Lead Content
  • UPC – Uniform Plumbing Code
  • IPC – International Plumbing Code
  • State of Massachusetts Plumbing Board Approval (3/4″ device)
  • cUPC – National Plumbing Code of Canada
  • General Product :

  • RoHS – Directive 2011/65/EU Compliant
  • Electrical :

    Power Supply:
  • UL 60950
  • UL 1310
  • CSA C22.2 #223
  • CE EN 60950
  • Flo by Moen System (Rated for Indoor and Outdoor Use):
  • UL 1951
  • CSA C22.2 No. 68
  • CSA C22.2 No. 14
  • Communications :

  • FCC ID: PU5900-001 to CFR 47 Part 15 Subpart C
